Tray Sealers

ATSC-600

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray 250x160 mm Max. Other sizes - subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* 28 tray holders on standard machine other number subject to the size of the tray.

* Variable speed control to suit different size of tray or to customer requirement.

* Machine through put 20 - 25 cycle per minute depending tray size and material.

* Machine seal and cut controlled by pneumatic and central control by PLC.

* Electrical power supply : 240VAC, 10A constant.

* Pneumatic compressed air supply : 600KPa, 200L/M.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, easy to move for cleaning.

* Easy film loading system.

* Index forward inline design

* Fully guarded and safety protected.

Product Options

* Manual hot ink date coder TWR98

* Automatic hot foil date coder J27

* Automatic infeed device (Refernce only)

* Gas flushing only ( no vacuum )

View full product details »

ATSC-800M

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray 250x160 mm Max. Other sizes - subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* Machine through put 20 - 25 cycle per minute per line multy by number of lines.

* Two step sealing provide integrity seal for liquid products.

* Machine provided straight cross cutting with profile cutting as optional

* Machine seal and cut controlled by pneumatic.

* Electrical power supply : 240VAC, 10A constant.

* Pneumatic compressed air supply : 600KPa, 200L/M.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, easy to move for cleaning.

* Conveyor driving in indexing mode.

* Multy lines design for fast speed requirement.

* Co-Operating auto.Tray_Denestor or liquid filling.

Product Options

* Manual updated coder TWR98 each line

* Automatic hot foil date coder J27

* Auto.Tray_Denestor.

* Liquid filling

* Profile cutting

* Additional line

View full product details »

ATSL-3225

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray320x250 mm Max. Other size available subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Card board or Foil trays.

* Modify atmosphere by vacuum and gas flushing controllable by digital controller.

* Sealing jig with profile cut on sealing film(About 2 mm film edge extend out the tray).

* Machine through put around 10 -20 trays/minute depending vacuum, gas flushing level.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Standard Infeed conveyor model SSCC-20/200. 200Wx2000Lx14" Pitch.

* Electrical power : 415VAC, 3PH, 10A .Compressed air : 600KPa, 200L/M.

Product Features

* Sturdy construction, stainless steel frame work.

* Flexible to choose vacuum, gas flushing or without.

* Easy film loading system.

* Sealing jig changable in 20 minute.

* Fulled guarded and safety protected.

Product Options

* Manual hot foil datecoder TWR98

* Automatic Thermo printer J27

* Printed film PE.registration mark control

* Auot tray denestor

* Filling conveyor from 2.5M to 4.6M

* Second set of jig, top and bottom

View full product details »

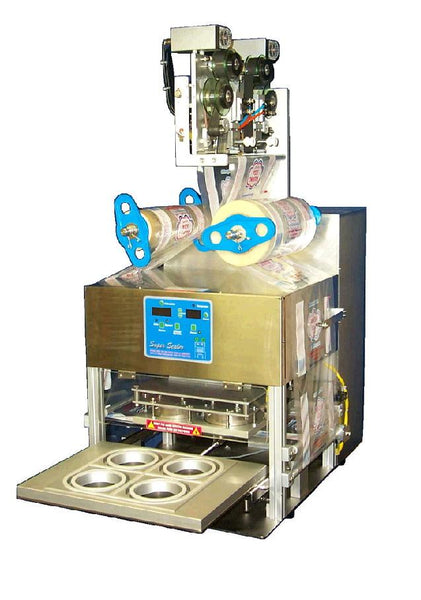

ET-T19LN

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays/tubs 260x320 mm Max. Other sizes available

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* Semi Automatic - Centrally controlled for all functions from Digital Control Panel

* Sealing jig with profile cut on sealing film ( 2 mm film lip out from tray edge).

* Machine through put around 6 - 8 trays/minute (operator dependent)

* Machine seal and cut controlled pneumatically. Film and jig driven by electric motor.

* Electrical power supply: 240VAC,10A. Compressed air requirement: 600KPa,20L/M.**

* Machine dimension: 500Wx700Dx700H. Machine weight: 65kg.

Product Features

* Table top operation - Stainless steel structure.

* Film length controlled by PE sensor or timeing

* Suitable for most 1 kg tray (2 off in one cycle)

* Automatic motion as: in/seal/cut/film unwind/out.

* Fully guarded and safety protected.

Product Options

* Second jig set - top/bottom (Four hole)

* Second jig set - top/bottom.(Twin hole)

* Manual Hot foil date coder.

* Air purge and gas flush system.

** Compressor 12CFM.

View full product details »

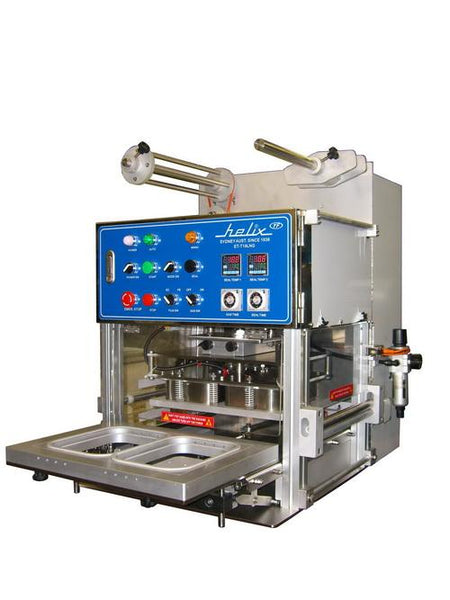

ET-T19LNG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays/tubs 260x320 mm Max. Other sizes available

* With gas flush capability

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* Semi Automatic. Centrally controlled by PLC. All functions controlled from Control Panel

* Sealing jig with profile cut on sealing film ( 2 mm film lip out from tray edge).

* Machine through put around 6 - 8 trays/minute (operator dependent)

* Machine seal and cut controlled pneumatically. Film and jig driven by electric motor.

* Electrical power supply: 240VAC,10A. Compressed air requirement: 600KPa,20L/M.**

* Machine dimension: 500Wx700Dx700H. Machine weight: 65kg.

Product Features

* Table top operation - Stainless steel structure.

* Film length controlled by PE sensor or timeing

* Suitable for most 1 kg tray (2 off in one cycle)

* Automatic motion as: in/seal/cut/film unwind/out.

* Fully guarded and safety protected.

Product Options

* Second jig set - top/bottom (Four hole)

* Second jig set - top/bottom.(Twin hole)

* Manual Hot foil date coder.

** Compressor requirment 12CFM.

View full product details »

ET-T19MM

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray 230 x 160mm Max. Other sizes available subject to requirement

* Suitable for any sealable tray such as PP.PE.PET.PVC.Cardboard or Foil trays

* Central digital control panel for all functions

* Sealing jig with profile cut on sealing film (2 mm of film from tray edge)

* Machine through put around 6 - 10 trays/minute (operator dependent)

* Machine seal and cut controlled electronically.

* Electric power supply: 240VAC, 10A.

* Machine dimension: 450W x 550D x 730H. Weight: 50kg.

Product Features

* Stainless steel finish for easy maintenance

* Table top operation with all safety guard.

* PC control panel for all operating function.

* Automation right through from product placed in.

* Motor driven without air compressor.

Product Options

* Manual hot ink date code TWR98

* Second set of jig, top and bottom

* Air purge and gas flush system

View full product details »

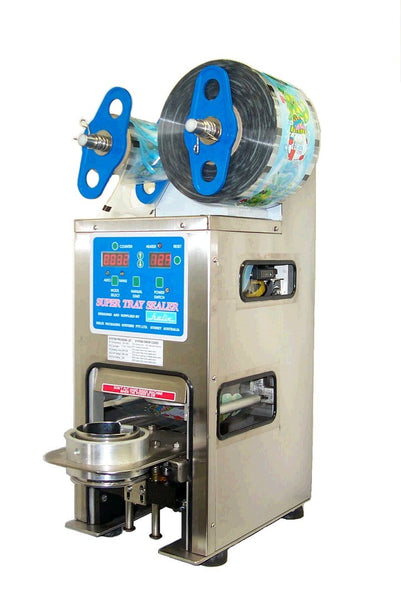

ET-T19SM

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to tubs 100mm diam & trays 100mm sq or less

* Suitable for any sealable item as PP.PE.PET.PVC Cardboard or Foil

* Semi-automatic - Mechanical operation by motor and centrally controlled from PC panel

* Sealing jig with profile cut on sealing film (2mm of film lip from tray/tub edge)

* Machine throughput around 6 - 8 units per minute (operator dependent)

* Film position controlled by PE sensor (printed Film) or film length by timeing

* Electrical power supply: 240VAC, 10A constant

* Machine dimension: 250W x 350D x 650H. Weight app. 35kg.

Product Features

* Stainless steel finish for easy maintenance

* Table top operation

* Easy film loading system

* System controlled by PC digital panel.

* Fully guarded and safety protected

Product Options

* Manual setting hot foil coder

* Second jig set - top and bottom

* Air purge and gas flush system

View full product details »

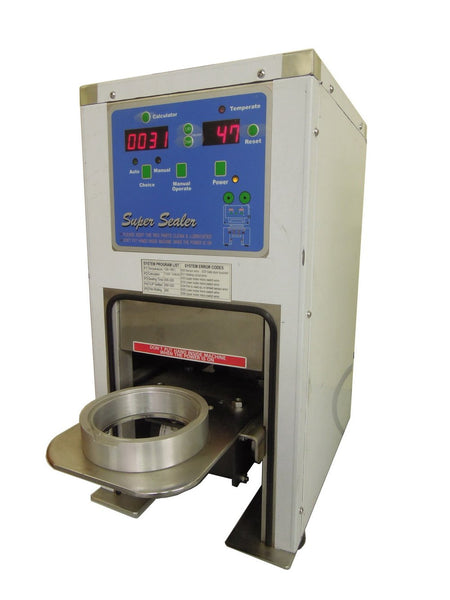

ET-T19SM-LID

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to tubs 100mm diam & trays 100mm sq or less

* Suitable for any sealable item as PP.PE.PET.PVC Cardboard or Foil

* Semi-automatic - Mechanical operation by motor and centrally controlled from PC panel

* Sealing jig with Pre-Cut on sealing film (2mm of film lip from tray/tub edge)

* Machine throughput around 5 units per minute (operator dependent)

* Pre-Cut Lid position located by a "Off-Cut" on the sealing flange

* Electrical power supply: 240VAC, 2A constant

* Machine dimension: 250W x 350D x 650H. Weight app. 35kg.

Product Features

* Stainless steel finish for easy maintenance

* Table top operation

* Easy film loading system

* System controlled by PC digital panel.

* Fully guarded and safety protected

Product Options

View full product details »

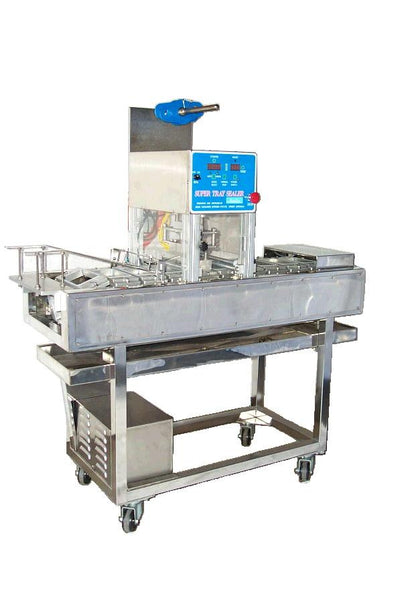

ET-T2001

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 150x200 mm. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with across cut on sealing film (About 5 mm film edge extend out tray).

* Machine through put around 15 -20 trays/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PC.

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 200L/M.

* Machine dimension: 500W x 1300 H x 1230 L. 80 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation and economical.

* Easy film loading system.

* Functional on the Digital Control Panel.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder TWR98

* Precut lid applicator

* Second set of jig, top and bottom

* Profile cutting for liding film

* Film drive for rewind and unwind

View full product details »

ET-T2011

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays-up to 150x230 mm Max. Others subject to discussion.

* Suitable for any sealable trays - PP. PE. PET. PVC. or Cardboard

* Sealing jig with across cut on sealing film (About 5 mm of film lip from tray edge).

* Through put around 15 -20 trays/minute. Automatic single line operation.

* Seal/cut done by pneumatic operation and centrally controlled from PC. board

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 200L/M.

* Machine dimension: 500W x 14800 H x 1600 L. 280 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, compact design.

* Index forward - fast operation - economical.

* Easy film loading system.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder TWR98

* Pre-cut lid applicator

* Second jig set - top/bottom

* Profile cutting for liding film

* Film drive for rewind and unwind

View full product details »

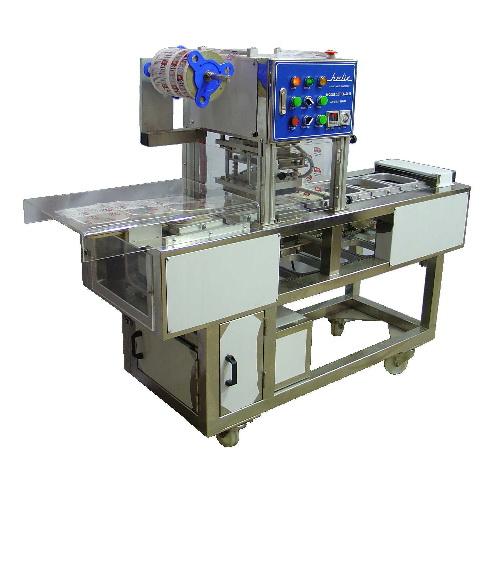

ET-T2011-TOOL

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Sealing jig with across cut on sealing film (About 5 mm of film lip from tray edge).

* Through put around 15 -20 trays/minute. Automatic single line operation.

* Seal/cut done by pneumatic operation and centrally controlled from PC. board

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 200L/M.

* Machine dimension: 500W x 1300 H x 1500 L. 120 kg approximate.

Product Features

Product Options

View full product details »

ET-T2011E

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays-up to 150x230 mm Max. Others subject to discussion.

* Suitable for any sealable trays - PP. PE. PET. PVC. or Cardboard

* Sealing jig with across cut on sealing film (About 5 mm of film lip from tray edge).

* Through put around 15 -20 trays/minute. Automatic single line operation.

* Seal/cut done by pneumatic operation and centrally controlled from PC. board

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 200L/M.

* Machine dimension: 500W x 1300 H x 1600 L. 280 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, compact design.

* Index forward - fast operation - economical.

* Easy film loading system.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder TWR98

* Pre-cut lid applicator

* Second jig set - top/bottom

* Profile cutting for liding film

* Film drive for rewind and unwind

View full product details »

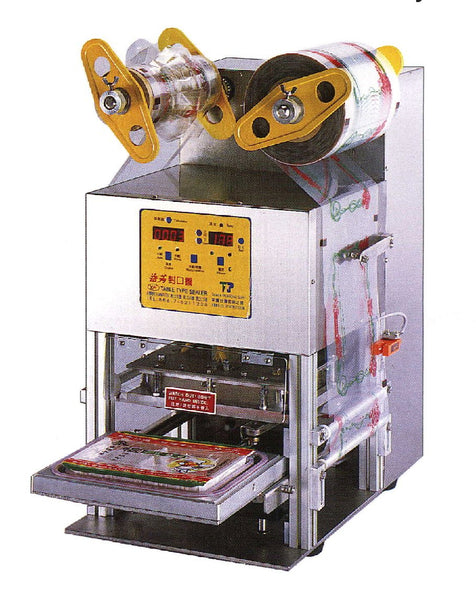

ET-T201S

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray160x280 mm Max. Other size available subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* Central digital control panel for all functions

* Sealing jig with profile cut on sealing film ( 2 mm of film from tray edge).

* Machine through put around 6 -10 trays/minute (operator dependent)

* Machine seal and cut controlled pneumatically. Film and jig driven by electric motor.

* Electrical power supply: 240VAC,10A. Compressed air requirement: 600KPa,20L/M.

* Machine dimension: 600Wx500Dx700H. Machine weight: 25kg.

Product Features

* Stainless steel finish for easy maintenance.

* Table top operation with Easy film loading system.

* suitable for most of 1 kg tray or smaller.

* Automatic motion as: in-seal-cut-film wind-out.

* Fulled guarded and safety protected.

Product Options

* Manual hot foil date coder ET980 installed

* Second set of jig, top and bottom.

* Compressor 12CFM .

* Air purge and gas flush system.

View full product details »

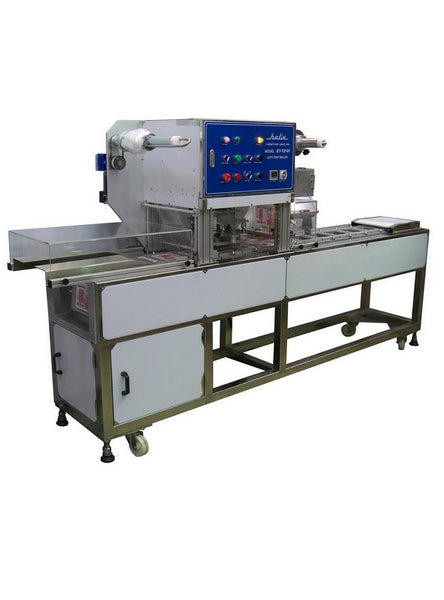

ET-T2101

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays-up to 150x200 mm. Others subject to discussion.

* Suitable for any sealable trays - PP. PE. PET. PVC. or Cardboard

* Sealing jig with profile cut of sealing film (About 3 mm film lip from tray edge).

* Throughput around 18 cycle/minute. Automatic single line operation.

* Seal/cut pneumatic operation - centrally controlled by PLC. & TSC

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 200L/M.**

* Machine dimension: 600W x 1500 H x 2000 L. 380 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* Film unwind and rewind device. Easy loading.

* Index forward, fast operation

* Profile cutting to suit tray size and shape.

* On braked castors, compact design.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray denestor

* Precut lid applicator

* Second jig set - top/bottom

* Gas Flushing

View full product details »

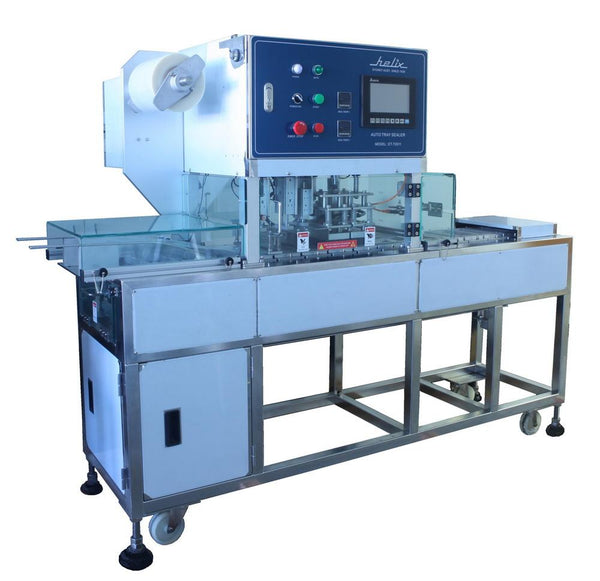

ET-T2111E

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays-up to 200x300 mm Max. Others subject to discussion.

* Suitable for any sealable trays - PP. PE. PET. PVC. or Cardboard

* Sealing jig with across cut on sealing film (About 5 mm of film lip from tray edge).

* Through put around 15 -20 trays/minute. If 2 sandwiches then speed up to 40P/M

* Seal/cut done by pneumatic operation and centrally controlled from PC. board

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 200L/M.

* Machine dimension: 500W x 1500 H x 1800 L. 380 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, compact design.

* Index forward - fast operation - Used Index Gear

* Easy film loading system.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder TWR98

* Pre-cut lid applicator

* Second jig set - top/bottom

* Profile cutting for liding film

* Film drive for rewind and unwind

View full product details »

ET-T2123HF

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film/lids to tray/tubs up to 160x280 mm in 1 Line. Other size available.

* Suitable for any sealable trays/tubs i.e. PET. PVC.

* Sealing jig has 3 off High Freequency welding heads.

* Throughput around 15 - 18 cycles/minute.

* Sealing - pneumatic operation - centrally controlled by relay logic.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply required: 600KPa, 600L/M.

* Machine dimension: 600W x 1600 H x 3000 L. 620 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, compact design.

* 3 Modules - each forward index

* Pre-heat temperature control for HF welding

* All functions controlled by relay logic

Product Options

* Second HF jig set - Top/Bottom

* Ink jet datecoder

* Tray De-nestor

* Piston Filler

* Precut lid applicator

View full product details »

ET-T2201

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 600L/M.

* Machine dimension: 600W x 1500 H x 3000 L. 620 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy film loading system.

* One operation for all.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

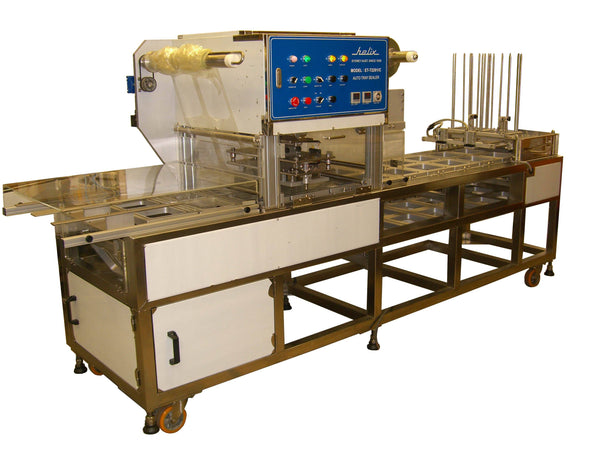

ET-T2201D

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18-20 cycle/minute. 2 Lines through put 36-40 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 600L/M.

* Machine dimension: 600W x 1500 H x 3000 L. 620 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy film loading system.

* One operation for all.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

ET-T2201D/L

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 600L/M. (Compressor not supplied)

* Machine dimension: 700W x 1500 H x 4000 L. 800 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy film loading system.

* Auto Tray Denesting

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

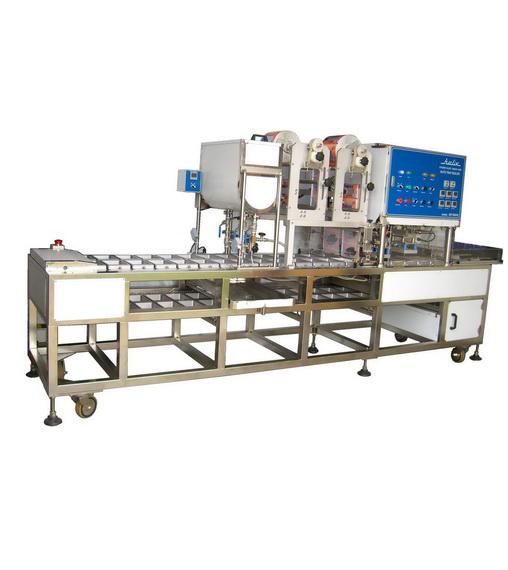

ET-T2212

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. And Card Board trays.

* Sealing jig with straight cut on sealing film (About 5 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply required : 600KPa, 600L/M.

* Machine dimension: 750W x 1500 H x 3500 L. 650 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast ans smove operation.

* 2 step sealing hot plate for heavy sealing

* Easy film loading system.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

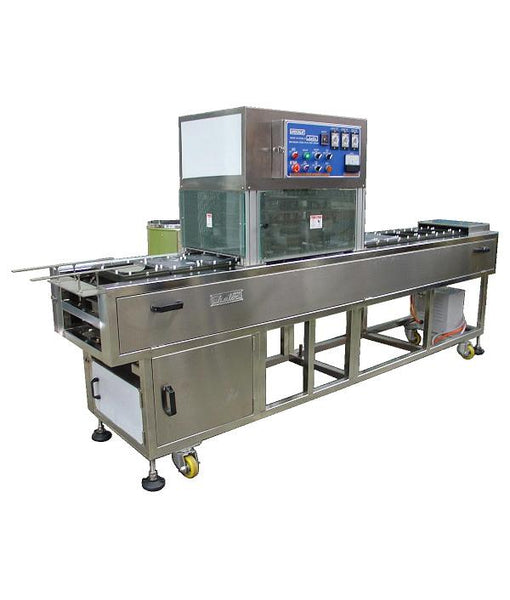

ET-T2221U

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film/lids to tray/tubs up to 160x280 mm in 1 Line. Other size available.

* Suitable for any sealable trays/tubs i.e. PET. PVC.

* Sealing jig has 3 off High Freequency welding heads.

* Throughput around 15 - 18 cycles/minute.

* Sealing - pneumatic operation - centrally controlled by relay logic.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply required: 600KPa, 600L/M.

* Machine dimension: 600W x 1600 H x 3000 L. 620 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, compact design.

* 3 Modules - each forward index

* Pre-heat temperature control for HF welding

* All functions controlled by relay logic

Product Options

* Second HF jig set - Top/Bottom

* Ink jet datecoder

* Tray De-nestor

* Piston Filler

* Precut lid applicator

View full product details »

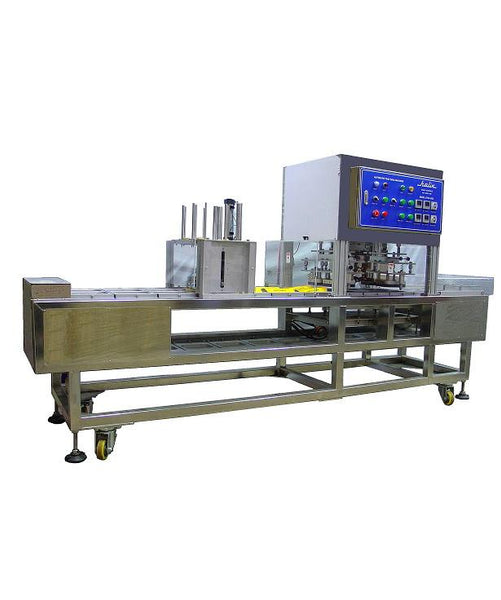

ET-T2232L

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with 2 station and co-operated with lid applicator.

* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.

* Machine sealing and liddingt controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 800L/M.

* Machine dimension: 600W x 1500 H x 3000 L. 720 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy lid loading system.

* All function on the PLC Control.

Product Options

* Piston Filler

* Tray De-nester

View full product details »

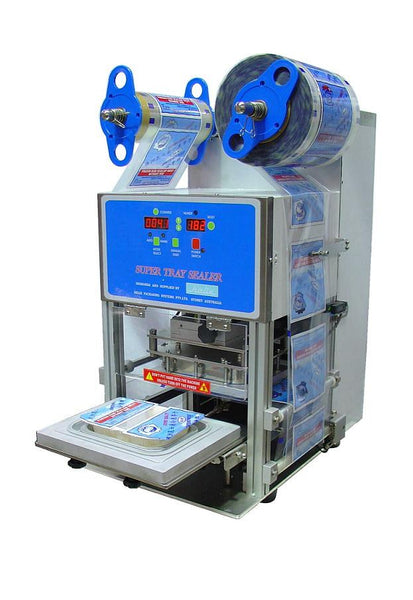

ET-T2316M

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray 230 x 160mm Max. Other sizes available subject to requirement

* Suitable for any sealable tray such as PP.PE.PET.PVC.Cardboard or Foil trays

* Central digital control panel for all functions

* Sealing jig with profile cut on sealing film (2 mm of film from tray edge)

* Machine through put around 6 - 10 trays/minute (operator dependent)

* Machine seal and cut controlled electronically.

* Electric power supply: 240VAC, 10A.

* Machine dimension: 450W x 550D x 730H. Weight: 50kg.

Product Features

* Stainless steel finish for easy maintenance

* Table top operation with all safety guard.

* PC control panel for all operating function.

* Automation right through from product placed in.

* Motor driven without air compressor.

Product Options

* Manual hot ink date code TWR98

* Second set of jig, top and bottom

* Air purge and gas flush system

View full product details »

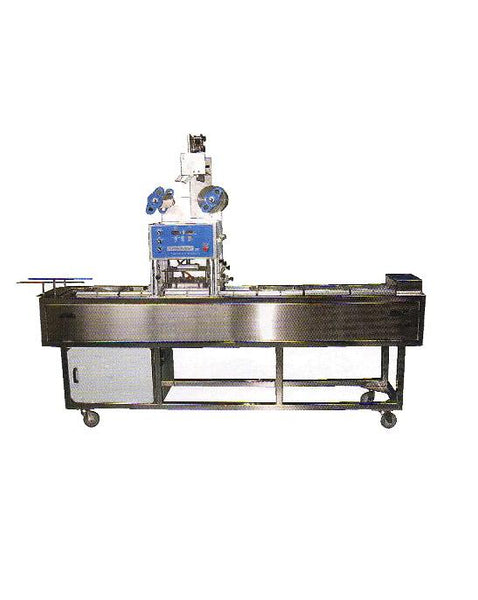

ET-T2401

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 150x200 mm in 4 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute x 4 Line = 70 tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PC.

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 300L/M.

* Machine dimension: 600W x 1500 H x 2500 L. 380 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation and midium duty.

* Easy film loading system.

* All function on the PC Digital Control Panel.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Precut lid applicator

* Second set of jig, top and bottom

* Profile seal and cut

* Double seal device

View full product details »

ET-T2823CG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 180x220 mm in 1 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 18 cycle/minute.

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 720W x 1320 H x 2100 L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

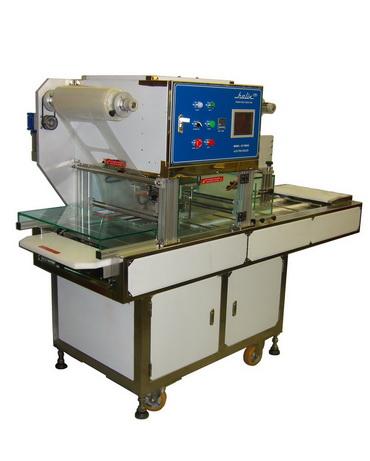

ET-T2823CG/L/4

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 180x220 mm in 1 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 18 cycle/minute.

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 720W x 1320 H x 2100 L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

ET-T2823CVG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 180x220 mm in 1 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 18 cycle/minute.

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 720W x 1320 H x 2100 L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

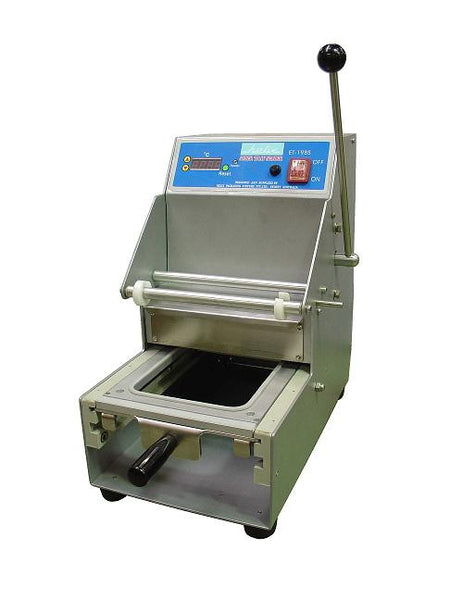

ET-T29HS

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray 230 x 160mm Max. Other sizes available subject to requirement

* Suitable for any sealable tray such as PP.PE.PET.PVC.Cardboard or Foil trays

* Digital temperature controller.

* Sealing jig with straight cut on sealing film (12 mm at front and 20 mm at the back)

* Machine through put around 2 - 5 trays/minute (operator dependent)

* Machine seal and cut controlled by operator.

* Electric power supply: 240VAC, 3A.

* Machine dimension: 260W x 450D x 460H. Weight: 25kg.

Product Features

* Stainless steel finish for easy maintenance

* Table top operation

* PC control panel for temperature control.

* Econormical design.

Product Options

* Second set of jig, top and bottom

View full product details »

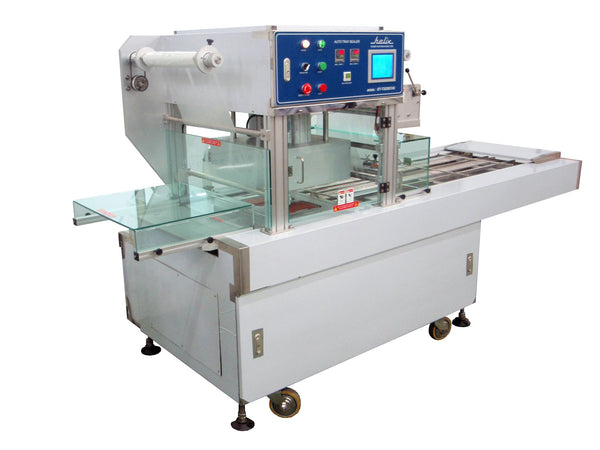

ET-T3218CG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto D118mm in 3 Line. Or 320x180 in 1 Line.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 10-15 cycle/minute.

* Product conveyor using D8x525 pulling rod (Internal) 8" pitch appart

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 930W x 1600H x (2500+300)L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

ET-T3223CG/D

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 320x230 in 1 Line or 230x180 in 2 Lines

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 15-18 cycle/minute.

* Product conveyor using D8x525L pulling rod (Internal) 16" pitch appart

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 930W x 1600H x 4,000L. 900 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

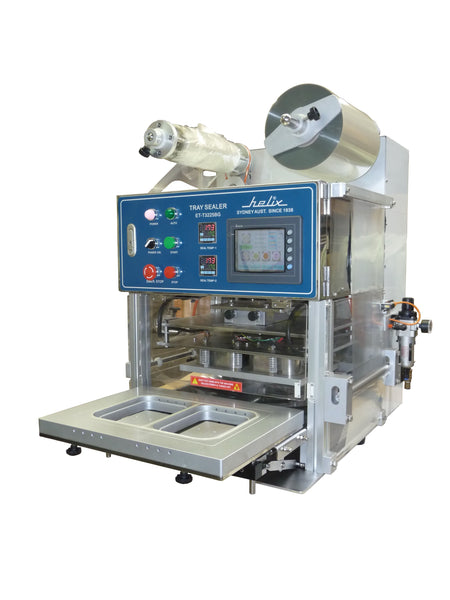

ET-T3225BG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film to trays 320x250 mm Max. Other sizes suject to discussion

* With gas flush capability to reach a less than 2% oxygin residue

* Suitable for any sealable trays such as PP. PE. PET. PVC. Cardboard or Foil trays.

* Semi Automatic. Centrally controlled by PLC. And TSC (Touch Screen Controller)

* Sealing jig with profile cut on sealing film ( 2 mm film lip out from tray edge).

* Machine through put around 6 - 10 trays/minute (operator dependent)

* Machine seal and cut controlled pneumatically. Film and jig driven by electric motor.

* Electrical power supply: 240VAC,10A. Compressed air requirement: 600KPa,20L/M.**

* Machine dimension: 500Wx700Dx700H. Machine weight: 90kg.

Product Features

* Table top operation - Stainless steel structure.

* Film length controlled by PE sensor or timeing

* Suitable for most 1 kg tray (2 off in one cycle)

* Fully guarded and safety protected.

* 2-Step Cylinder designed for Gas Flushing

* Bot Jig 460Wx350D. Cut hole 370W

Product Options

* Second jig set - top/bottom (Four hole)

* Second jig set - top/bottom.(Twin hole)

* Manual Hot foil date coder.

** Compressor requirment 12CFM.

View full product details »

ET-T3225CG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 320x250 in 1 Line or 230x180 in 2 Lines

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device

* Machine through put around 10-15 cycle/minute.

* Product conveyor using D8x525 pulling rod (Internal) 17" pitch appart

* Machine controlled by PLC. through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 930W x 1600H x (2500+300)L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

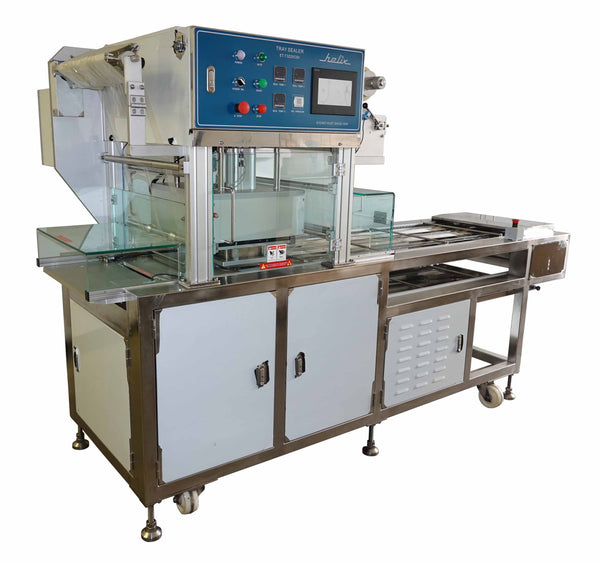

ET-T3225CGV

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 180x260 mm in 2 Line. Or 320x250 in 1 Line.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with film seal, cut and rewind device with vacuum chamber 500x410W

* Machine through put around 8-15 cycle/minute (Vacuum Level depended)

* Product conveyor using D8x525 pulling rod (Internal) 17" pitch appart

* Machine controlled by Mitsubishi PLC. Through Touch screen (TSC)

* Electrical power supply : 240VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 930W x 1600H x (2500+300)L. 600 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* With Vacuum and Gas flushing

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Piston Filler

* Tray De-nester

* Thermo Printer

* Hot Foil Printer

* Second set of tooling

View full product details »

ET-T3225FGV

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays 320x250 mm Max. Other size available.

* Suitable for any sealable trays/tubs, i.e. PP. PE. PET. PVC. Cardboard or Foil

* Modify atmosphere by vacuum and gas flushing controlled by digital controller.

* Sealing jig with profile cut on sealing film (About 2 mm film lip from tray edge).

* Through put around 6 trays/minute (50% vacuum, gas flushing level.)

* Seal/cut - pneumatic operation, centrally controlled by PLC.

* Electrical power supply : 415VAC,3Ph, 10A constant.

* Pneumatic compressed air supply required : 600KPa, 200L/M.**

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, easy to move for cleaning.

* Easy film loading system.

* Easy sealing jig inter change design.

* Fulled guarded and safety protected.

Product Options

* Printed film PE. registration mark control

* Manual hot ink datecoder ET-F20M

* Vacuum storage tank for fast speed.

* Second jig set - top/bottom

* Auto tray lifting after sealing

** Compressor 2.5HP with hose / fitting

View full product details »

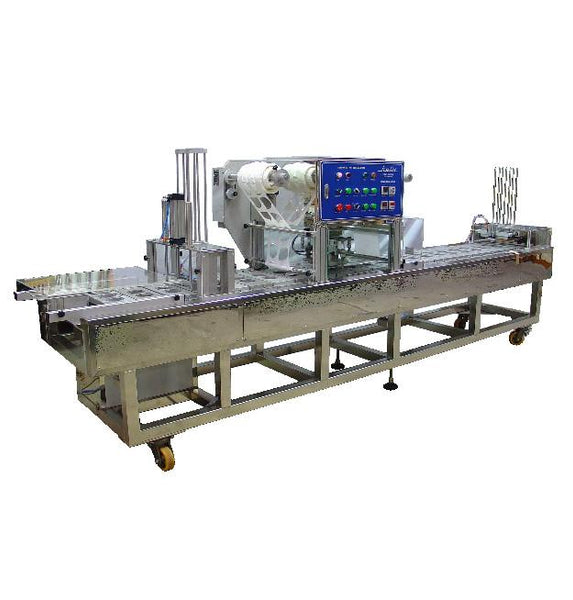

ET-T6201D/M/L

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 600L/M. (Compressor not supplied)

* Machine dimension: 750W x 1500 H x 5000 L. 1,000 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy film loading system.

* Auto Tray Denesting; Filling; Lidding

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

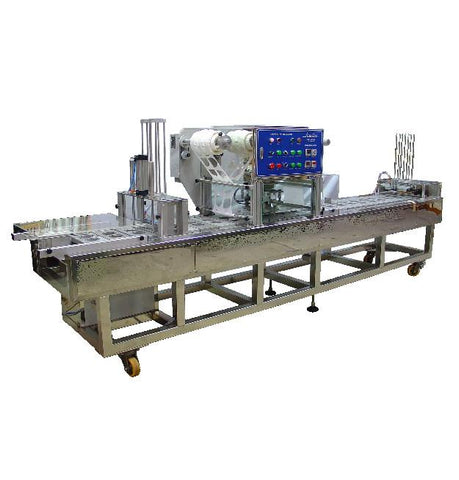

ET-T6301D/M/L

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 3 Line. Others subject to discussion.

* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.

* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).

* Machine through put around 18 cycle/minute. 3 Lines through put 54 Tray/minute.

* Machine seal and cut controlled by pneumatic and central controlled by PLC.

* Electrical power supply : 415VAC, 10A.

* Pneumatic compressed air supply : 600KPa, 600L/M. (Compressor not supplied)

* Machine dimension: 1,000W x 1,600 H x 4,500 L. 1,200 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* Easy film loading system.

* Auto Tray Denesting; Filling; Lidding

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nester

* Piston Filler

* Double seal device

* Precut lid applicator

View full product details »

ET-T8188-2008

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray/tubs up to 160x220 mm in 1 Line. Others subject to discussion

* Suitable for any sealable tray/tubs i.e. PP. PE. PET. PVC. and Cardboard

* Machine fully automatic operating from tray denesting; filling; sealing to descharge

* Sealing jig with profile cut on sealing film (About 2 mm film lip from tray edge)

* Throughput - around 10-20 cycle/minute. Depending piston fill speed

* Seal/cut pneumatic operation, centrally controlled by PLC.

* Electrical power supply : 240VAC, 10A.

* Compressed air supply required: 600KPa, 600L/M. (User supplied)

* Machine dimension: 1000W x 1100 D x 1300 H. 600 kg approximate.

Product Features

* Stainless steel frame work. 800mm turn table.

* Ferguson stepping gear motion with 8 position.

* Mitsubishi PLC control system

* Automatic Tray de-nestor (see Options)

* Volumemetric piston filling pump (see Options)

* Jig inter-changeable design.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Tray De-nestor

* Piston Filler

* Double jig seal system (2 lines)

* Precut lid applicator

View full product details »

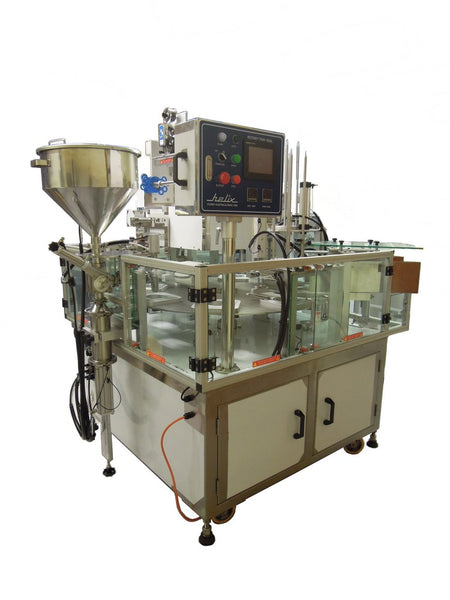

ET-T8188R-2012

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray/tubs up to 160x220 mm in 1 Line. Others subject to discussion

* Suitable for any sealable tray/tubs i.e. PP. PE. PET. PVC. and Cardboard

* Machine fully automatic operating from tray denesting; filling; sealing and lidding

* Sealing jig with profile cut on sealing film (About 2 mm film lip from tray edge)

* Throughput - around 10-15 cycle/minute, subject to product and fill speed

* Seal/cut pneumatic operation, centrally controlled by PLC and TSC

* Electrical power supply : 240VAC, 10A.

* Compressed air supply required: 600KPa, 600L/M. (User supplied)

* Machine dimension: 1,380W x 1,380 D x 1,700 H. 700 kg approximate.

Product Features

* Stainless steel frame work. D1,100mm turn table.

* Ferguson stepping gear motion with 8 position.

* Mitsubishi PLC and TSC control system

* Automatic Tray de-nestor and lid applicator

* Volumemetric piston filling pump

* Jig inter-changeable design.

Product Options

* Printed film PE.registration mark control

* Manual hot ink datecoder ET-02M

* Piston Filler

* Double jig seal system (2 lines)

View full product details »

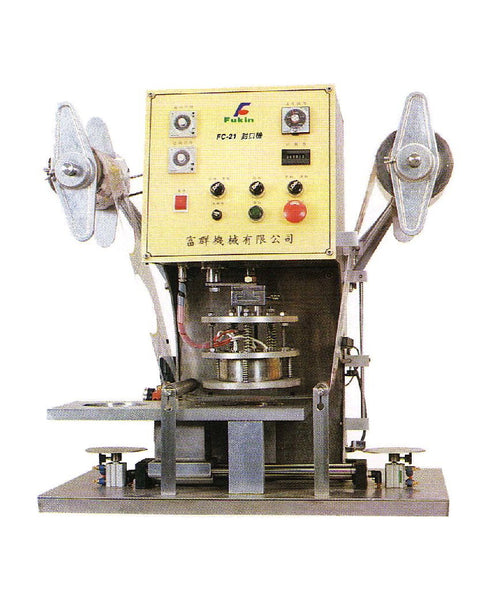

FC-T21A/L

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tub O125 mm Max. Other size available subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Card board or Foil trays.

* Semiautomatic for two sealing position change alternatively.(Left and Right)

* Sealing jig with profile cut on sealing film (About 2 mm film edge extend out the tray).

* Machine through put 900 tubs/hr.

* Machine seal and cut controlled by pneumatic.

* Electrical power supply : 240VAC, 6A constant.400W. Air supply : 600KPa, 100L/M.

* Machine dimension 750L x 480W x 650H. 60 kg.

Product Features

* Sturdy construction, stainless steel frame work.

* Bench top mount.

* Easy film loading system.

Product Options

* Manual hot foil datecoder TWR98 installed $5,600.00

* Second set of jig, top and bottom $3,800.00

View full product details »

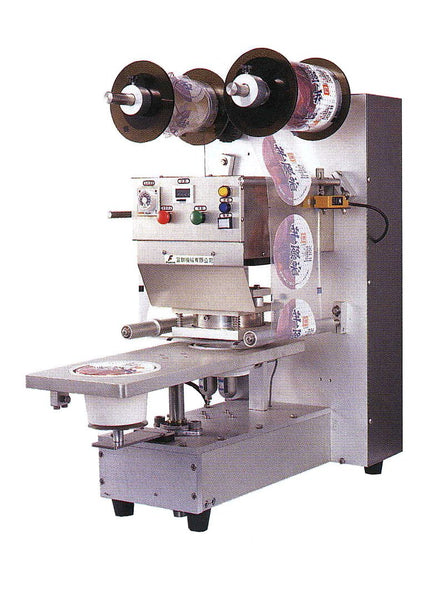

FC-T21B/R

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tub O125 mm Max. Other size available subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Card board or Foil trays.

* Semiautomatic for two sealing position change alternatively.(Rotating molde)

* Sealing jig with profile cut on sealing film (About 2 mm film edge extend out the tray).

* Machine through put 850 tubs/hr.

* Machine seal and cut controlled by pneumatic.

* Electrical power supply : 240VAC, 6A. 300W constant. Air supply : 600KPa, 100L/M.

* Machine dimension 700L x 390W x 750H. 50 kg.

Product Features

* Sturdy construction, stainless steel frame work.

* Bench top mount.

* Easy film loading system.

Product Options

* Manual hot foil datecoder TWR98 installed $5,600.00

* Second set of jig, top and bottom $3,800.00

View full product details »

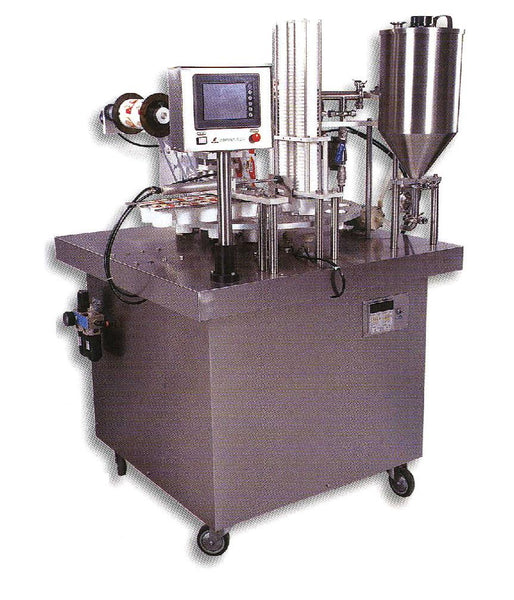

FC-T32A/R

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tub O125 mm Max. Other size available subject to requirement.

* Suitable for any sealable trays such as PP. PE. PET. PVC. Card board or Foil trays.

* Fully automatic from tub dispenser, filling(optional), sealing, cutting, output in line.

* Sealing jig with profile cut on sealing film (About 2 mm film edge extend out the tray).

* Machine through put 1000 tubs/hr.(Single model) 2000 tubs/hr. (Double model).

* Machine seal and cut controlled by pneumatic and central controlled by touch screen.

* Electrical power supply : 240VAC, 10A constant.

* Pneumatic compressed air supply : 600KPa, 200L/M.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, easy to move for cleaning.

* Touch screen for easy understanding operation.

* Can be selected to roll form film or pre cut lid.

* Can be double sealing for liquid packaging

Product Options

* Manual hot foil datecoder TWR98

* Automatic hot foil date coder J27

* Double Model for fast speed

* Second set of jig, top and bottom

* Perspex guard

* Liquid filling system subject to discuss.

View full product details »

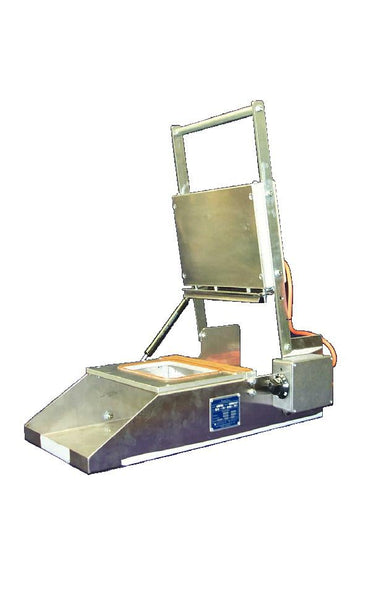

HX-T2315H

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* For all sealable material trays, tubs or containers.

* Heat temperature controlled by 'PID' digital controller

* Maximum tray size: 230 mmL x 150 mmW x 80 mmH.

* Machine dimension: 540 mmL x 250 mmW x 160 mmH (15kg packed weight ).

* Electrical data: 240 VAC, 450 Wat, Full duty cycle.

* Maximum film size: 220 mmW. Roll diameter 200 mm .

* Film thickness from 15 um to 100 um.

* Machine price does not include jig plate. See Product Optional Item .

Product Features

* Stainless steel sheet metal frame work.

* Bench top operation, easy to move around.

* Easy changed jig plate for different tray.

* Film seal and cut at the same time ( cross cut ).

* Gas strut counterweight lift assist.

Product Options

* Each tray cut out on jig.

* Jig plate for the machine.

* Tray lid location pin set per tray.

View full product details »

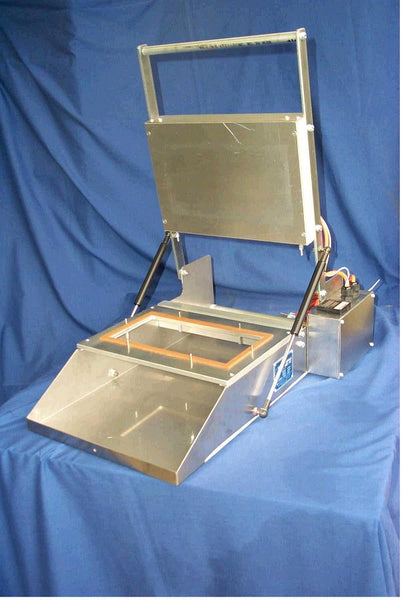

HX-T2820H

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* For sealing lidding film, foil laminate or board to sealable material trays, tubs.

* Heat temperature controlled by 'PID' digital controller

* Maximum tray size:280mL x 200 mmW x 80 mmH.

* Machine dimension: 580 mmL x 320 mmW x 160 mmH. (20kg packed weight).

* Electrical data: 240 VAC, 1000 Wat. Full duty cycle.

* Maximum film size: 300 mmW. Roll diameter 200 mm Max.

* Film thickness from 15 um to 100 um.

* Machine price does not include jig plate. See PRODUCT OPTIONS below.

Product Features

* Stainess steel sheet metal frame work.

* Bench top operation, easy to move around.

* Easy changed jig plate for different tray.

* Film seal and cut at the same time ( cross cut ).

* Gas strut counterweight lift assist.

Product Options

* Each tray hole/s cut out in jig.

* Jig plate for the machine .

* Pre-cut lid location pin set per tray.

View full product details »

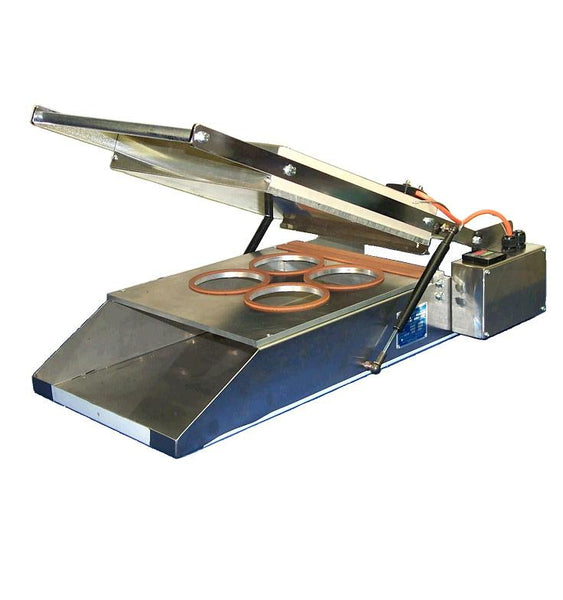

HX-T3225H

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* For all sealable material trays, tubs or containers.

* Heat temperature controlled by 'PID' digital controller

* Maximum tray size: 320 mmL x 250 mmW x 80 mmH.

* Machine dimension: 700 mmL x 320 mmW x 160 mmH. (25kg packed weight).

* Electrical data: 240 VAC, 1200 Wat. Full duty cycle.

* Maximum film size: 300 mmW. Roll diameter 200 mm Max.

* Film thickness from 15 um to 100 um.

* Machine price does not include jig plate. See Product Optional Item below.

Product Features

* Stainess steel sheet metal frame work.

* Bench top operation, easy to move around.

* Easy changed jig plate for different tray.

* Film seal and cut at the same time ( cross cut ).

* Gas strut counterweight lift assist.

Product Options

* Each tray cut out on jig.

* Jig plate for the machine.

* Tray lid location pin set per tray.

View full product details »

HX-T3225STVG

$888,888.00

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine seals lidding film etc to trays 320x250 mm Max. Other size available.

* Suitable for any sealable trays/tubs, i.e. PP. PE. PET. PVC. Cardboard or Foil

* Modify atmosphere by vacuum and gas flushing controlled by digital controller.

* Sealing jig with profile cut on sealing film (About 2 mm film lip from tray edge).

* Through put around 6 trays/minute (50% vacuum, gas flushing level.)

* Seal/cut - pneumatic operation, centrally controlled by PLC.

* Electrical power supply : 415VAC,3Ph, 10A constant.

* Pneumatic compressed air supply required : 600KPa, 200L/M.**

Product Features

* Sturdy construction, stainless steel frame work.

* On braked castors, easy to move for cleaning.

* Easy film loading system.

* Easy sealing jig inter change design.

* Fulled guarded and safety protected.

Product Options

* Printed film PE. registration mark control

* Manual hot ink datecoder ET-F20M

* Vacuum storage tank for fast speed.

* Second jig set - top/bottom

* Auto tray lifting after sealing

** Compressor 2.5HP with hose / fitting

View full product details »

+Packaging Machines

+Main menu

Tray Sealers

Definition

Product

Footer menu

Main menu

News & Updates
